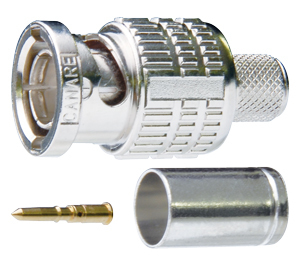

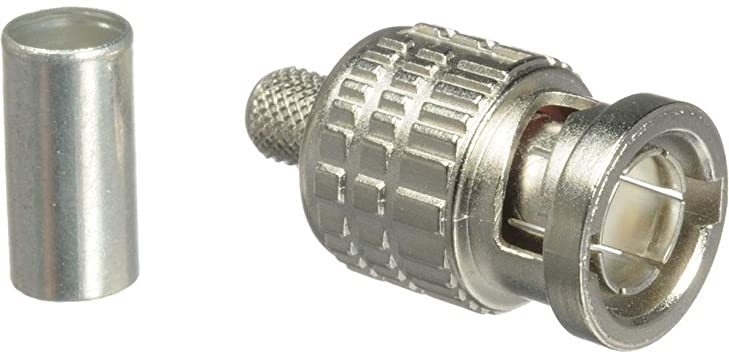

CANARE BCP-C4F, Slim BNC Crimp Plug for L-4CFB and B1505A Cable.



CANARE BCP-C4F, Slim BNC Crimp Plug for L-4CFB, etc

●  SMPTE 259M & 292M Compliant.
●  Serial Digital Video.
●  HDTV Upgrades.
●  NTSC Analog.
●  Test Equipment.
●  Satellite Headends.
●  TELCOM.
●  True 75 Ohms construction Crimp Pin & Sleeve.
●  DC to 2 GHz >26dB Return Loss (<1.1 VSWR).
●  Mechanically mates with common 50 Ohms BNC.
●  Elongated Body for better finger grip.
●  Superior cable pull strength.
●  Gold plated center pins 'snap lock' in place.
●  Beryllium copper outer contact.
●  Easy Assembly using Canare Strip & Crimp Tools.
●  Operating temperature: ~-20 to +60 degrees Celsius.
●  75 Ohms BNC Connector, Straight Plug.



CATALOGO CANARE: https://c.logosware.com/lg2nbn/YE5Lx/ccW7p/html5.html#page=1

MAS INFORMACION: Canare Corp.: 75 Ohms BNC Connectors: 75 Ohms BNC Crimp Plugs(BCP-C Series)




Product Listings
       Model
Suitable Cable
Canare
Suitable Cable
Others
Center Pin Sleeve Boot Die Set

   BCP-C1

   L-1.5C2VS
   V*-1.5C

      83264
      83267

  Solder

BN7022

CB01

TCD-1DB

   BCP-C5HD

   L-5CHD

-

  BN1139

B75004A

CB05A

TCD-5HD

   BCP-C6HD

   L-6CHD

-

  BN1083A

BN7074A

-

TCD-67HD

   BCP-C71A

-

      7731A
      9064
      9292
      1617A
      9011

  BN1043A

BN7021A

-

TCD-7CA

   BCP-C7FA

   L-7CFB

-

  BN1012B

BN7021A

-

TCD-7CA

   BCP-C7HD

   L-7CHD

-

  BN1082A

BN7021A

-

TCD-67HD





NOMINAL SPECIFICATIONS
       Model        Parts Imp. Bandwidth
VSWR
(Return Loss)
DC to 2GHz
Body

Material
(Plating)
Center
Contact
Material
(Plating)
Outer
Contact

Material
Dielectric

Material

   Crimp
Sleeve
Material
(Plating)

 BCP-C Series

Body
Crimp Pin,
Sleeve

75
ohm
<1.1
(>26dB)
Brass
(Nickel)
Brass
(Gold)
Beryllium
copper
PTFE Copper
(Tin)

(contd.) NOMINAL SPECIFICATIONS
        Model        Cable Retention
lbs.
(kgs)
      Insulation
Resistance
at 500V DC
       Voltage
Rating for
1 mim.
      Center
Contact
Resistance
      Outer
Contact
Resistance

 BCP-C Series

>55
(>24.9)
>1000M ohm 1500V AC
(rms)
<6m ohm <3m ohm


Pack Qty: 100pcs.

BCP-CHD Dimensions

Note: All of Canare crimp plugs, BCP-A,-B,-C, RCAP-C and FP-C, are the same procedure.
