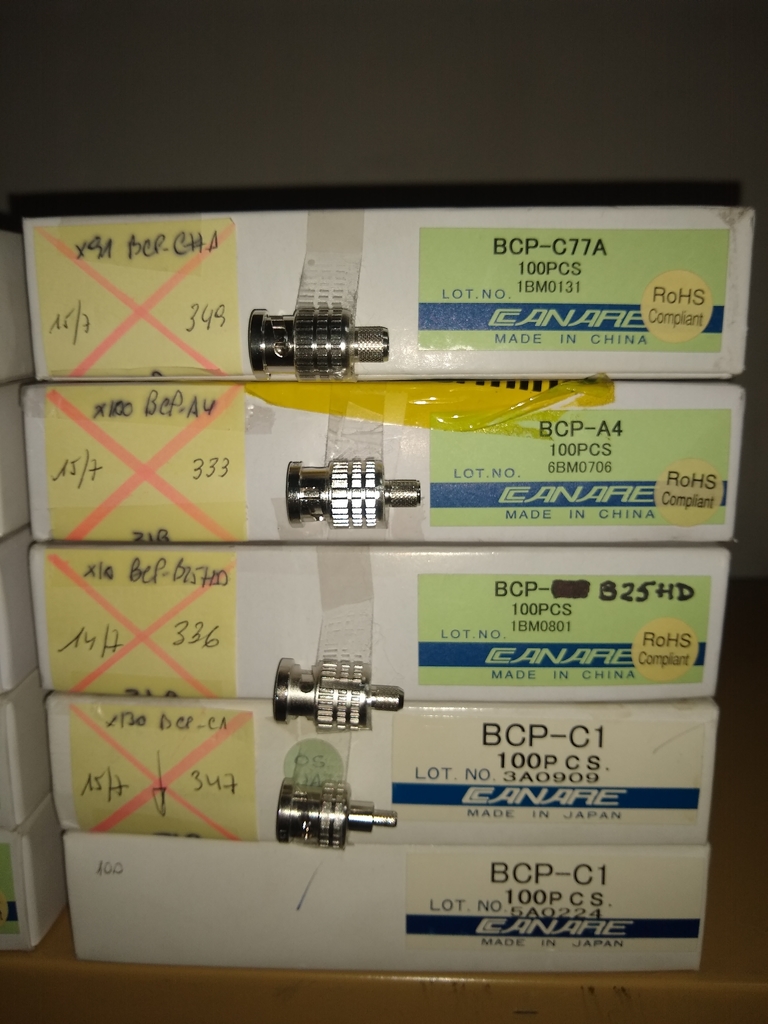

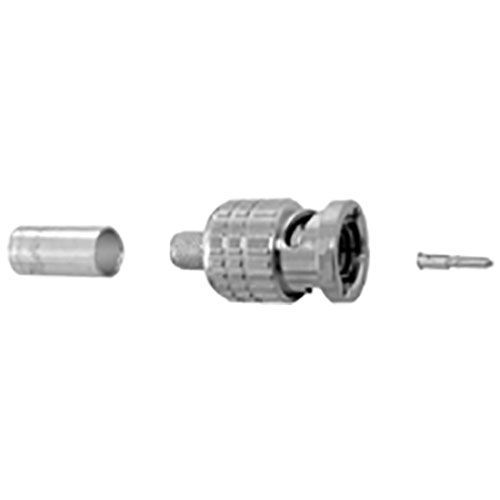

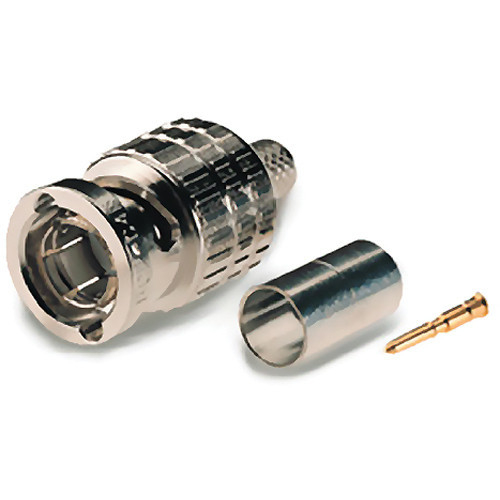

The Canare BCP-C77A BNC Crimp Plug is a BCP connector widely used in a number of analog to digital converters supporting different types of video formats. This crimp plug belongs to the BCP-C (Straight type) series and includes the B11016E center pin, B75004A sleeve, and TCD- 5CF, 55FA die set.

For Canare LV77S and Belden 8281F Cables.

Ideal for the following applications: SDI (Serial Digital Video), HDTV upgrades (DTV), NTSC analog system, test equipment, satellite headends, and telcom.

SMPTE 259M and 292M compliant

75 Ohms true construction

Mechanically mates with common 50 Ω BNC connector

Elongated body for better finger grip

Superior cable pull strength

Gold-plated contact pin snap locks into place

Good transmission quality

Position mark on body allows the connector fit to be checked easily

Use of crimping to attach the connector ensures quick, reliable installation



CATALOGO CANARE: https://c.logosware.com/lg2nbn/YE5Lx/ccW7p/html5.html#page=1

MAS INFORMACION: Canare Corp.: 75 Ohms BNC Connectors: 75 Ohms BNC Crimp Plugs(BCP-C Series)





CANARE BCP-C77A, BNC CONNECTOR F/LV77S and Belden 8281F

$926,32
CANARE BCP-C77A, BNC CONNECTOR F/LV77S and Belden 8281F $926,32
