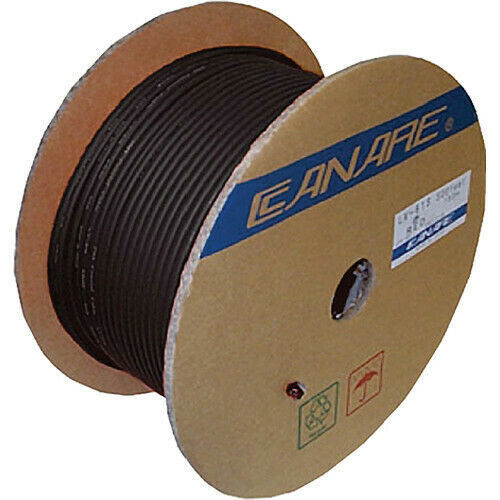

CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE
CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE - comprar online
CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE en internet
CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE - SVC

CANARE L-CFB DIGITAL VIDEO COAX CABLES

75 ohm cables designed specifically for digital video applications. L-4CFB is RG59 type, L-5CFB is RG6 type. Semi-matt non-reflective PVC jacket. Double screened, foil plus braid. L-5CFB handle signals from DC to 3GHz, thus covering uncompressed HDTV signals right up to 3Gbits/sec (SMPTE424M). Blue jacket is designed to work with chroma-key. A range of colours is available to special order, allow 4 weeks for delivery (supplied as full reels of 200 metres only).

MAS INFORMACION: http://www.canare.com/ProductItemDisplay.aspx?productItemID=80

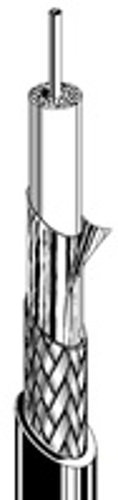

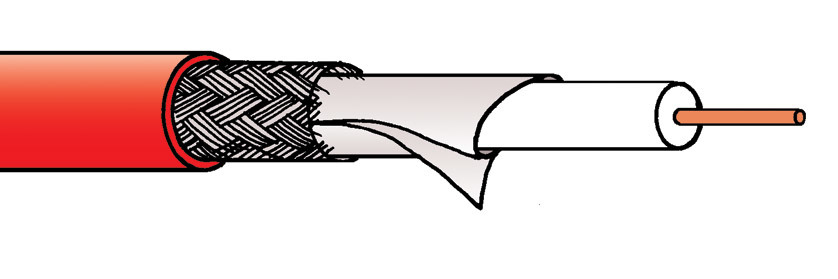

Technical Specification:

Cable size group: L-4CFB is group Q. Other types are not listed in Canford group tables - for suitable BNC connectors, see Canare BNC connectors.

Centre wire: 0.65mm (L-3CFB), 1/0.8mm (L-4CFB), 1/1.05mm (L-5CFB), plain copper
Dielectric: Foam polyethylene, 3.1mm (L-3CFB), 3.7mm (L-4CFB), 5.0mm (L-5CFB), OD
Screen 1: Aluminium foil, 100% coverage
Screen 2: Tinned copper braid
Jacket: Soft PVC 5.5mm (L-3CFB), 6.1mm (L-4CFB), 7.7mm (L-5CFB) OD, various colours
Nominal impedance: 75 ohms
Capacitance (nom.): 55pf/m
Velocity ratio (nom.): 0.79

CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE

CANARE L-3CFB 100M - 75 OHM LOW LOSS COAXIAL CABLE
