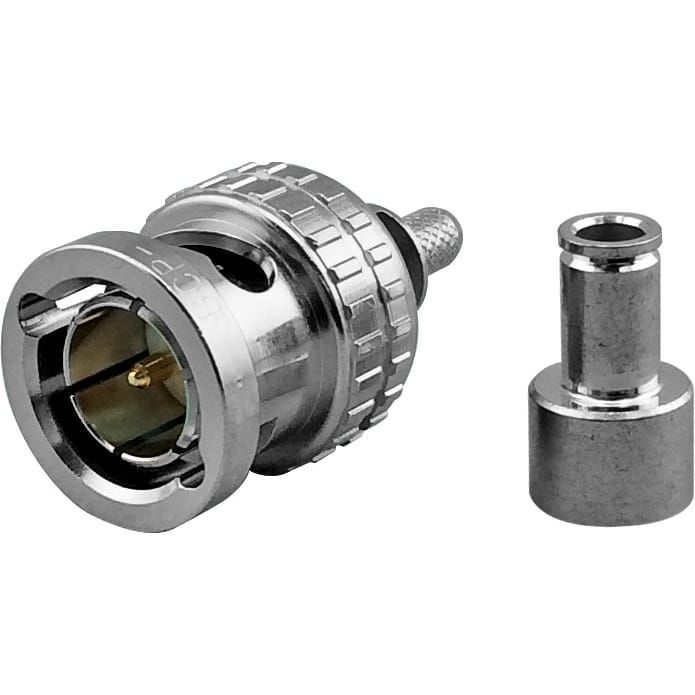

Canare 75 Ohms BNC Crimp Plugs (BCP-C Series) for Canare L1.5C2V5 / V-1.5C Cables or EQUIVALENT

● SMPTE 259M & 292M Compliant.
● Serial Digital Video. / HDTV Upgrades. / NTSC Analog. / Test Equipment
● Satellite Headends and TELCOM
.
● True 75 Ohms construction Crimp Pin & Sleeve.
● DC to 2 GHz >26dB Return Loss (<1.1 VSWR).
● Mechanically mates with common 50 Ohms BNC.
●  Elongated Body for better finger grip.
●  Superior cable pull strength.
●  Gold plated center pins 'snap lock' in place.
●  Beryllium copper outer contact.
●  Easy Assembly using Canare Strip & Crimp Tools.
●  Operating temperature -20 to +60 degrees Celsius.
●  75 Ohms BNC Connector, Straight Plug.



CATALOGO CANARE: https://c.logosware.com/lg2nbn/YE5Lx/ccW7p/html5.html#page=1

MAS INFORMACION: Canare Corp.: 75 Ohms BNC Connectors: 75 Ohms BNC Crimp Plugs(BCP-C Series)

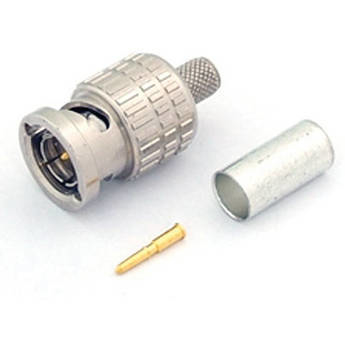

CANARE BCP-C1, BNC CONNECTOR, Solder Pin, Crimp Sleeve, for Canare L1.5C2V5 / V-1.5C Cables or EQUIVALENT

$473,68
CANARE BCP-C1, BNC CONNECTOR, Solder Pin, Crimp Sleeve, for Canare L1.5C2V5 / V-1.5C Cables or EQUIVALENT $473,68
